NOAA GFS analysis validation report

This dataset validation report plots a sample of values from the NOAA GFS analysis dataset over time and across space, comparing where possible to a previously validated reference dataset. It also reports the quantity of unavailable values and their associated timestamps. These analyses are one layer of a multi-layered dataset validation process we perform at dynamical.org and also provide users a preview of the dataset contents.

Report generation start time: 2026-05-26T02:13:21 UTC

Summary

This dataset has been reviewed and is ready for use. There is one known data gap: approximately 16 hours of unavailable values on 2022-11-29 → 2022-11-30 caused by corrupted index sidecars in the upstream NOAA GFS archive (see Review notes below).

What looks good

Across all 21 variables, the validation maps match the NOAA GEFS reference in continental placement and feature alignment on the 0.25° global grid (latitude north-up, longitude −180° to +180°), with no flipped axes, missing seams, or off-grid coordinates.
Validation and reference histograms overlap for every comparable variable, with no unit-scale offsets. Physical ranges are realistic across the global snapshot at 2024-03-11T06:00: temperature roughly −58 to +42 °C, surface pressure 49 to 107 kPa, mean sea-level pressure 95.4 to 105.3 kPa, 10 m winds within ±24 m/s, precipitable water 0.2 to 79.5 kg/m², downward shortwave radiation 0 to 956 W/m², downward longwave radiation 72 to 478 W/m².
Time series at both sampled points (lat 46.5°N, lon −166.5°E in the North Pacific; lat −50.5°S, lon 171°E in the South Pacific) track the reference closely over 2024-08-04 → 2024-08-14 for temperature, pressure, humidity, wind, and precipitable water; diurnal cycles in shortwave radiation are in phase; categorical and accumulated variables align with reference timing.
No unexpected nulls outside the documented upstream gap. No quantization banding, sentinel-value bleed-through (the 20 km cloud-ceiling and −50% frozen-precipitation-fraction values both also appear in the GEFS reference and are upstream GRIB conventions for "no ceiling" / "no precipitation"), or unit mismatches were observed.

Review notes

Unavailable values 2022-11-29 → 2022-11-30 (approximately 16 hours, all variables). The upstream s3://noaa-gfs-bdp-pds/ archive published .idx byte-index sidecars for the 2022-11-29T18Z, 2022-11-30T00Z, and 2022-11-30T06Z init cycles whose byte offsets do not align with the GRIB message boundaries in the corresponding GRIB files; the byte-range download path trusts those offsets and the partial bytes returned are not valid GRIB. Direct inspection of the underlying GRIB files confirms the data is intact at the source — only the published index is wrong. We are attempting to have these fixed at the source and will backfill once that has happened. Affected timestamps for instant variables: 2022-11-29T20:00, 21:00; 2022-11-30T02:00, 05:00, 08:00, 09:00, 10:00, 11:00 (8 per variable). Accumulated precipitation (precipitation_surface) has 12 additional 1-hour timestamps across the same window because deaccumulation also requires the adjacent leads. Visible in nulls_temperature_2m.png and every other nulls_<var>.png.

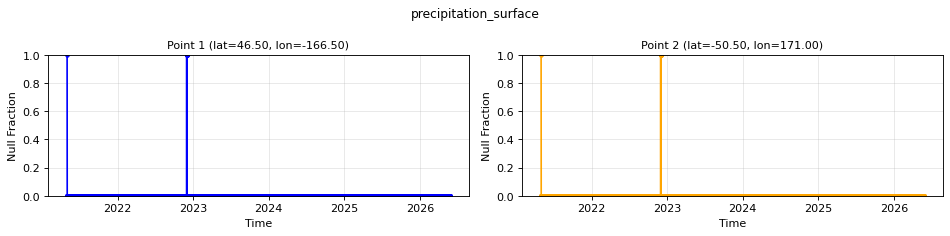

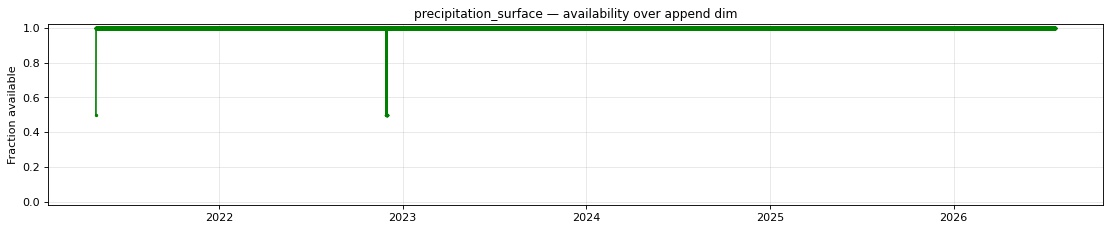

First timestamp of precipitation_surface (2021-05-01T00:00:00) is NaN at every spatial location. The analysis dataset derives accumulated precipitation by deaccumulating between adjacent GFS forecast leads, and there is no prior step before the dataset's start to deaccumulate against. This is expected; no other variable is affected. Visible in nulls_precipitation_surface.png.

Datasets

Role	Name	ID	Version	URL
Validation	NOAA GFS analysis	`noaa-gfs-analysis`	`v0.1.0`	`s3://us-west-2.opendata.source.coop/dynamical/noaa-gfs-analysis/v0.1.0.zarr`
Reference	NOAA GEFS analysis	`noaa-gefs-analysis`	`0.1.2`	`https://data.dynamical.org/noaa/gefs/analysis/latest.zarr`

Run parameters

Parameter	Value
Validation dataset type	analysis
Validation time range	time 2021-05-01T00:00 → 2026-05-25T20:00
Reference time range	time 2000-01-01T00:00 → 2026-05-25T18:00
Time scope	full dataset
Point 1	lat=46.5000, lon=-166.5000
Point 2	lat=-50.5000, lon=171.0000
Spatial comparison time	2024-03-11T06:00 (reference at 2024-03-11T06:00)
Timeseries period	Analysis period: 2024-08-04T01:36 - 2024-08-14T01:36

Combined plots

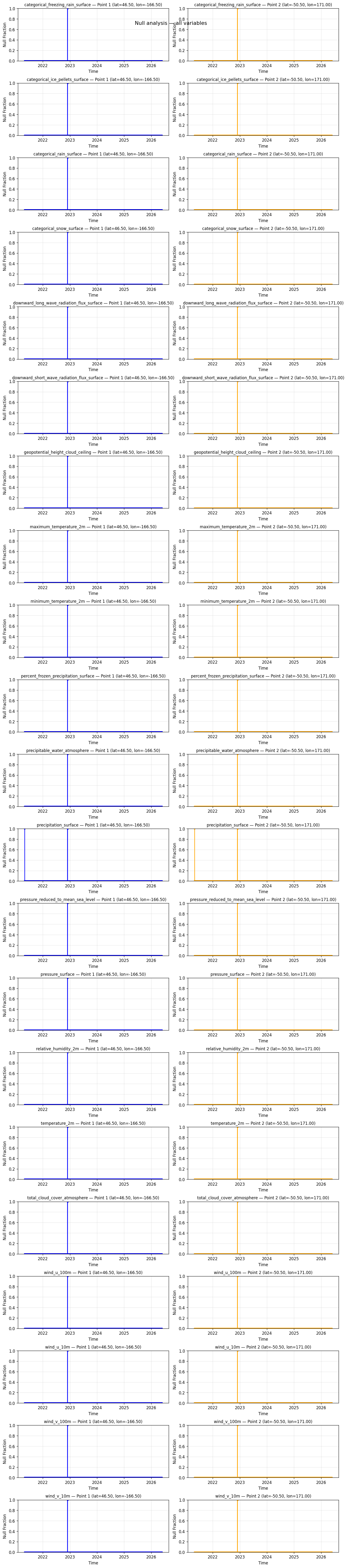

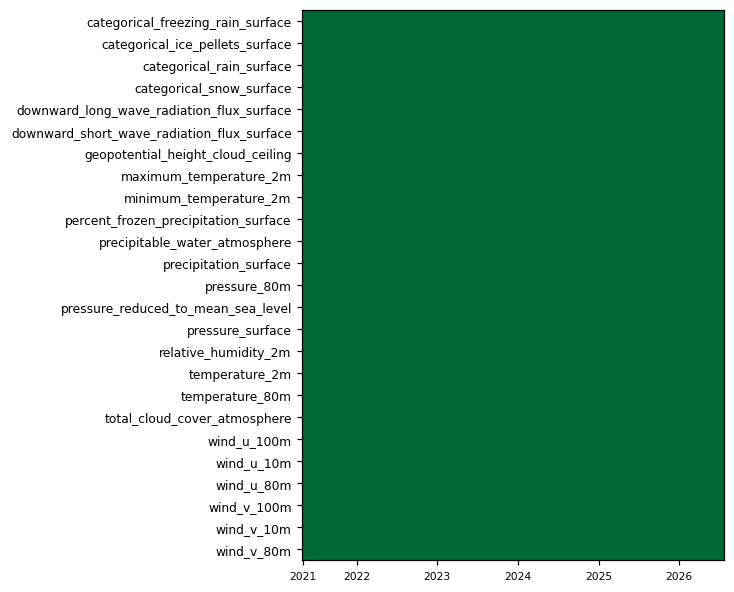

Unavailable values: combined_nulls.png

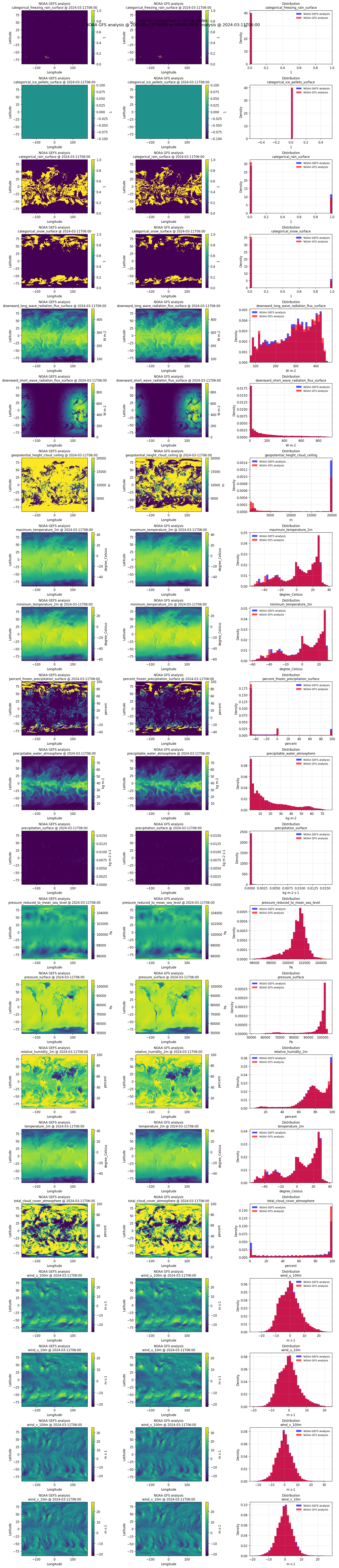

Spatial and distributions: combined_spatial.png

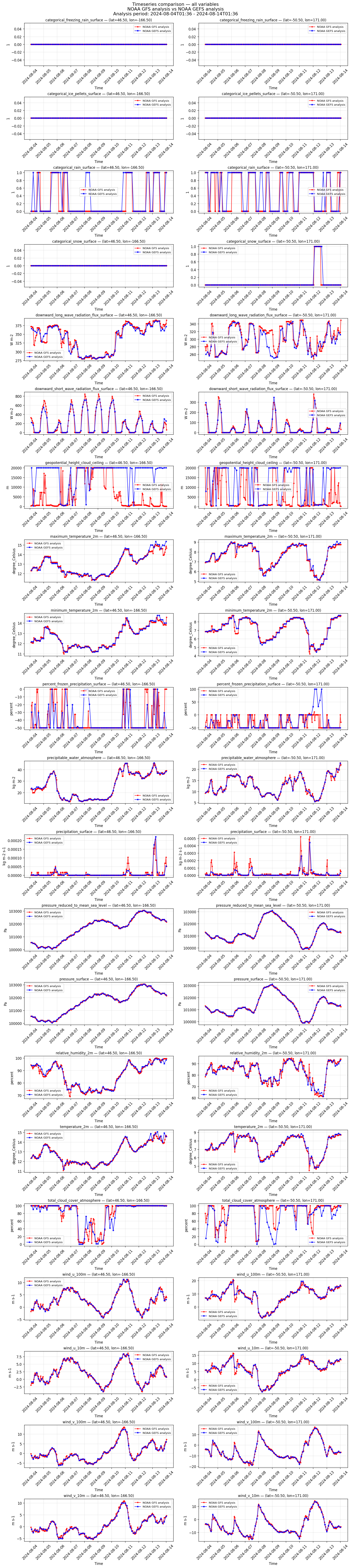

Time series: combined_temporal.png

Unavailable timestamps

Full list: unavailable_timestamps.txt

Variable	Point	Unavailable count	Total count	Unavailable %	Earliest unavailable	Latest unavailable
`categorical_freezing_rain_surface`	P1	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`categorical_freezing_rain_surface`	P2	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`categorical_ice_pellets_surface`	P1	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`categorical_ice_pellets_surface`	P2	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`categorical_rain_surface`	P1	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`categorical_rain_surface`	P2	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`categorical_snow_surface`	P1	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`categorical_snow_surface`	P2	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`downward_long_wave_radiation_flux_surface`	P1	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`downward_long_wave_radiation_flux_surface`	P2	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`downward_short_wave_radiation_flux_surface`	P1	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`downward_short_wave_radiation_flux_surface`	P2	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`geopotential_height_cloud_ceiling`	P1	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`geopotential_height_cloud_ceiling`	P2	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`maximum_temperature_2m`	P1	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`maximum_temperature_2m`	P2	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`minimum_temperature_2m`	P1	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`minimum_temperature_2m`	P2	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`percent_frozen_precipitation_surface`	P1	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`percent_frozen_precipitation_surface`	P2	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00

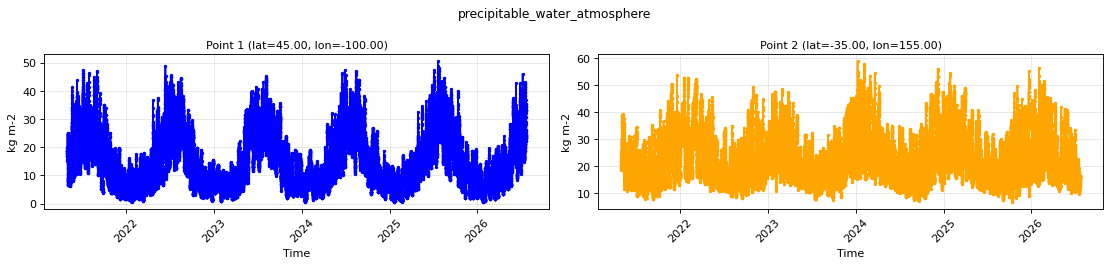

`precipitable_water_atmosphere`	P1	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`precipitable_water_atmosphere`	P2	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`precipitation_surface`	P1	13	44421	0.03%	2021-05-01T00:00:00	2022-11-30T12:00:00
`precipitation_surface`	P2	13	44421	0.03%	2021-05-01T00:00:00	2022-11-30T12:00:00

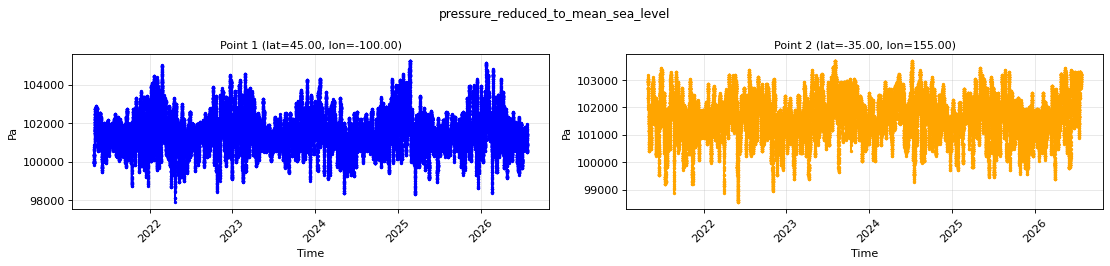

`pressure_reduced_to_mean_sea_level`	P1	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`pressure_reduced_to_mean_sea_level`	P2	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`pressure_surface`	P1	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`pressure_surface`	P2	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00

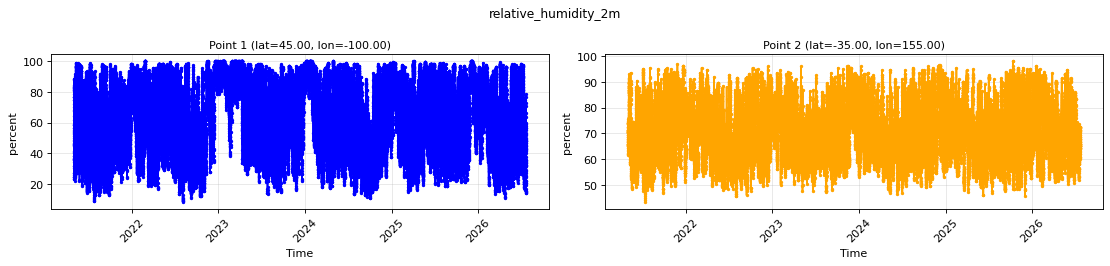

`relative_humidity_2m`	P1	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`relative_humidity_2m`	P2	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`temperature_2m`	P1	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`temperature_2m`	P2	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00

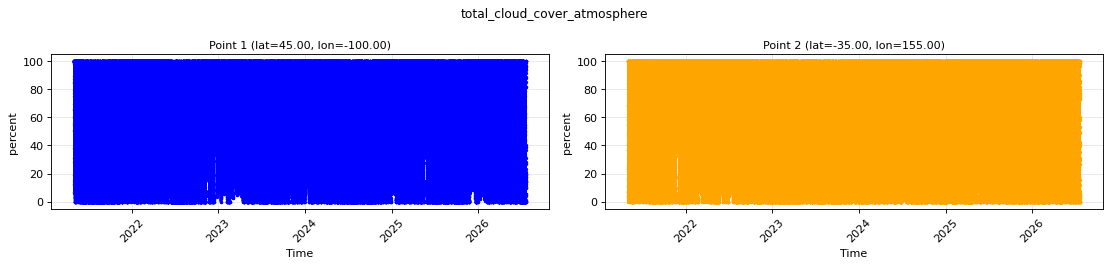

`total_cloud_cover_atmosphere`	P1	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`total_cloud_cover_atmosphere`	P2	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00

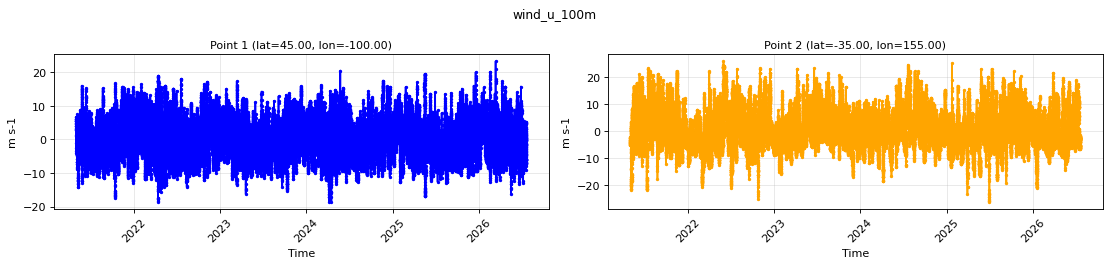

`wind_u_100m`	P1	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`wind_u_100m`	P2	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00

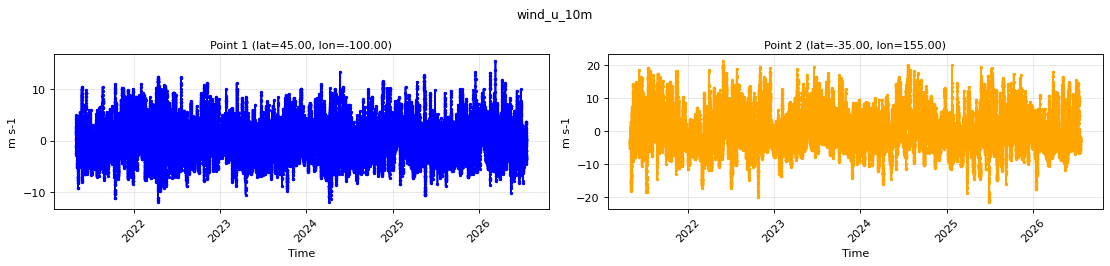

`wind_u_10m`	P1	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`wind_u_10m`	P2	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00

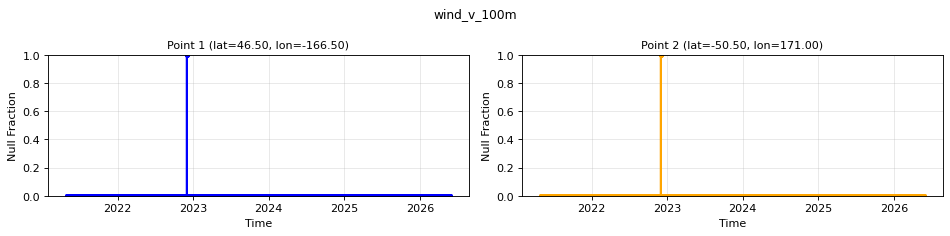

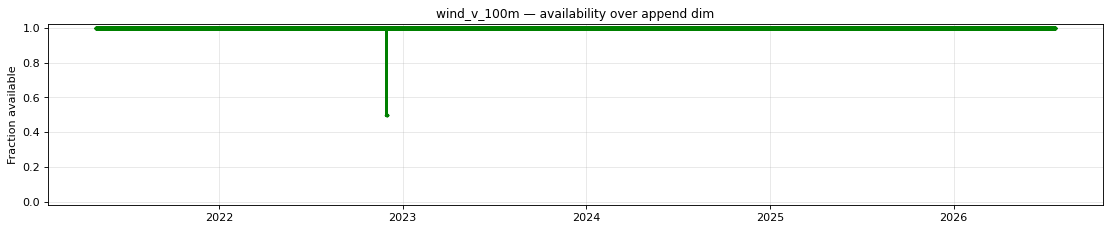

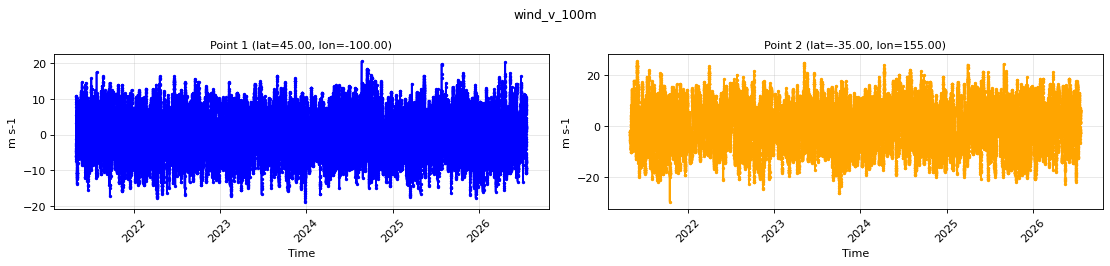

`wind_v_100m`	P1	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`wind_v_100m`	P2	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00

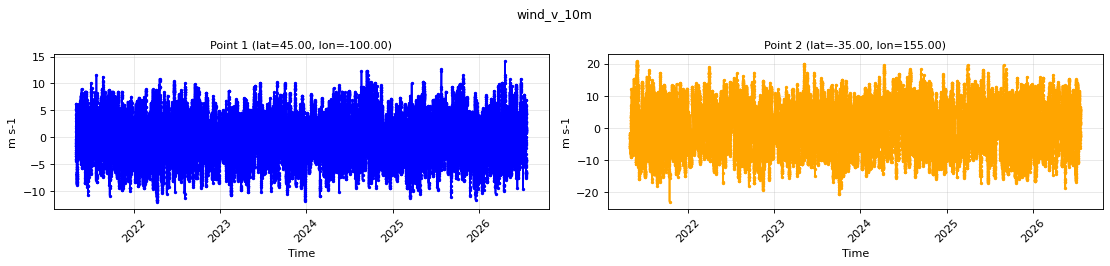

`wind_v_10m`	P1	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00
`wind_v_10m`	P2	8	44421	0.02%	2022-11-29T20:00:00	2022-11-30T11:00:00

Per-variable details

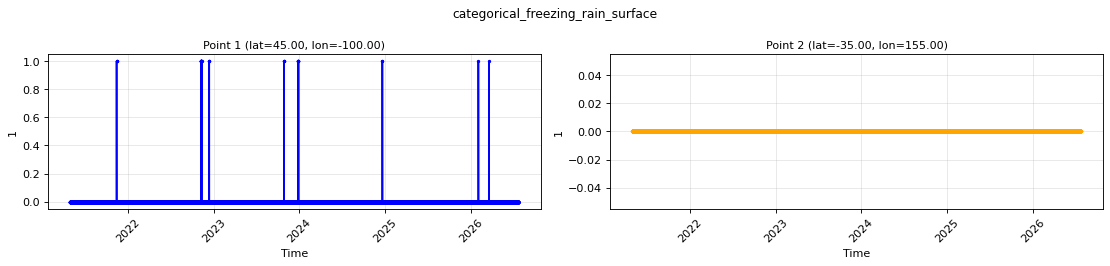

`categorical_freezing_rain_surface`

Metadata

Field	Value
units	`1`
long_name	Categorical freezing rain
short_name	cfrzr
standard_name	n/a
step_type	avg

Spatial — snapshot at 2024-03-11T06:00 (reference at 2024-03-11T06:00)

Source	min	mean	max
Validation	0	0.00102	1
Reference	0	0.0007397	1

Temporal — period Analysis period: 2024-08-04T01:36 - 2024-08-14T01:36

Source	min	mean	max
P1 Validation	0	0	0
P1 Reference	0	0	0
P2 Validation	0	0	0
P2 Reference	0	0	0

Nulls — P1: 8/44421 (8 unavailable (first: 2022-11-29T20:00:00, 2022-11-29T21:00:00, 2022-11-30T02:00:00 … last: 2022-11-30T09:00:00, 2022-11-30T10:00:00, 2022-11-30T11:00:00)); P2: 8/44421 (8 unavailable (first: 2022-11-29T20:00:00, 2022-11-29T21:00:00, 2022-11-30T02:00:00 … last: 2022-11-30T09:00:00, 2022-11-30T10:00:00, 2022-11-30T11:00:00))

$categorical_freezing_rain_surface — null fraction$

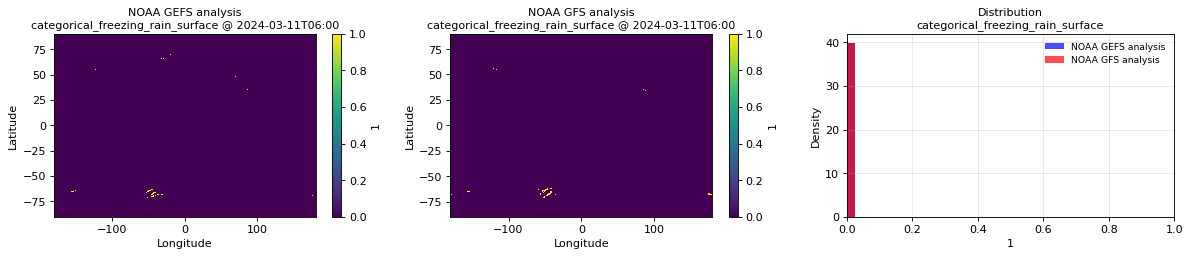

categorical_freezing_rain_surface — spatial comparison

categorical_freezing_rain_surface — time series comparison

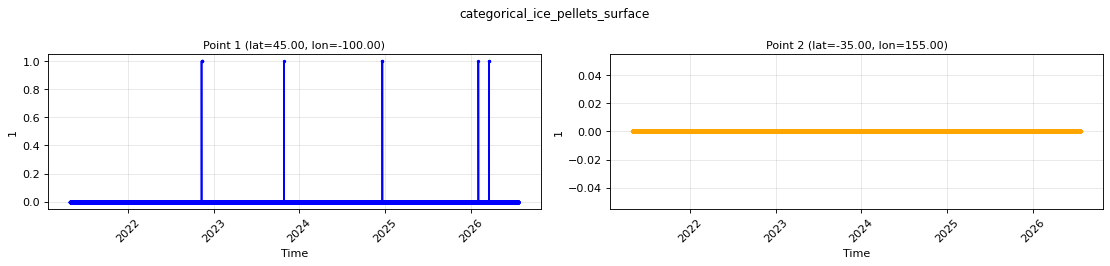

`categorical_ice_pellets_surface`

Metadata

Field	Value
units	`1`
long_name	Categorical ice pellets
short_name	cicep
standard_name	n/a
step_type	avg

Spatial — snapshot at 2024-03-11T06:00 (reference at 2024-03-11T06:00)

Source	min	mean	max
Validation	0	0	0
Reference	0	0	0

Temporal — period Analysis period: 2024-08-04T01:36 - 2024-08-14T01:36

Source	min	mean	max
P1 Validation	0	0	0
P1 Reference	0	0	0
P2 Validation	0	0	0
P2 Reference	0	0	0

$categorical_ice_pellets_surface — null fraction$

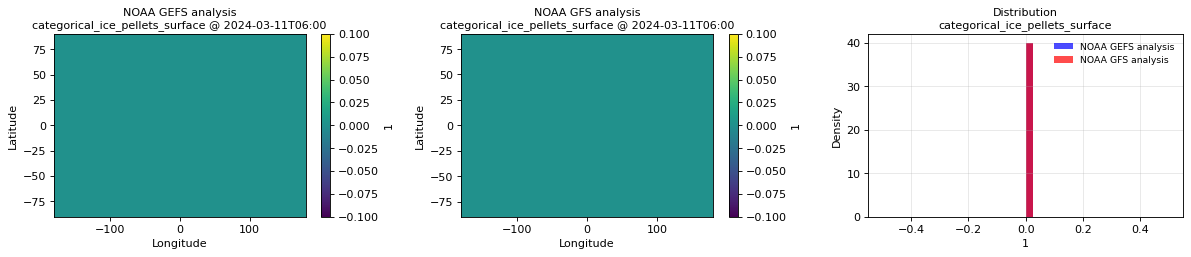

categorical_ice_pellets_surface — spatial comparison

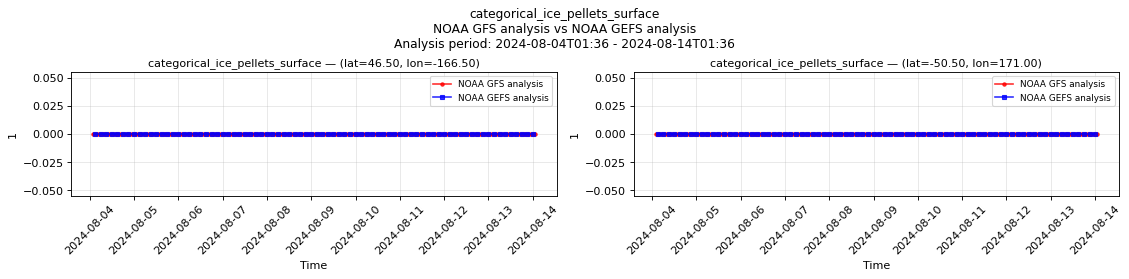

categorical_ice_pellets_surface — time series comparison

`categorical_rain_surface`

Metadata

Field	Value
units	`1`
long_name	Categorical rain
short_name	crain
standard_name	n/a
step_type	avg

Spatial — snapshot at 2024-03-11T06:00 (reference at 2024-03-11T06:00)

Source	min	mean	max
Validation	0	0.2252	1
Reference	0	0.2855	1

Temporal — period Analysis period: 2024-08-04T01:36 - 2024-08-14T01:36

Source	mean	max
P1 Validation	0.2458	1
P1 Reference	0.3375	1
P2 Validation	0.4667	1
P2 Reference	0.5625	1

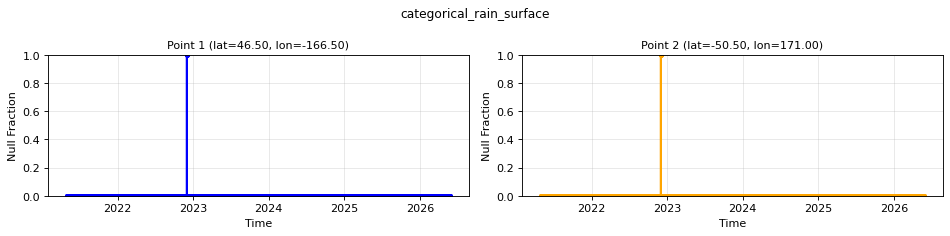

$categorical_rain_surface — null fraction$

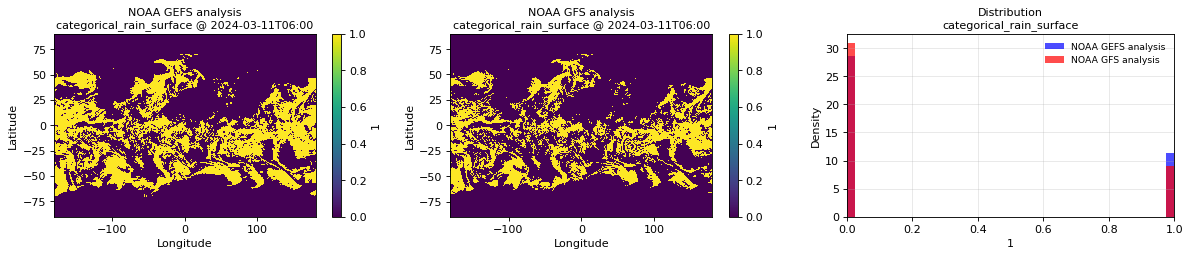

categorical_rain_surface — spatial comparison

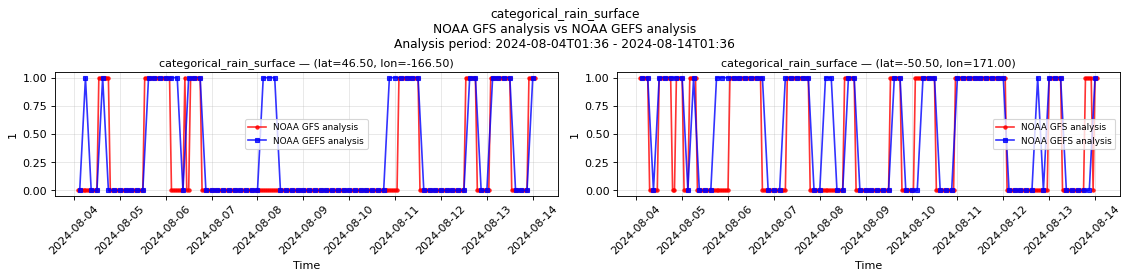

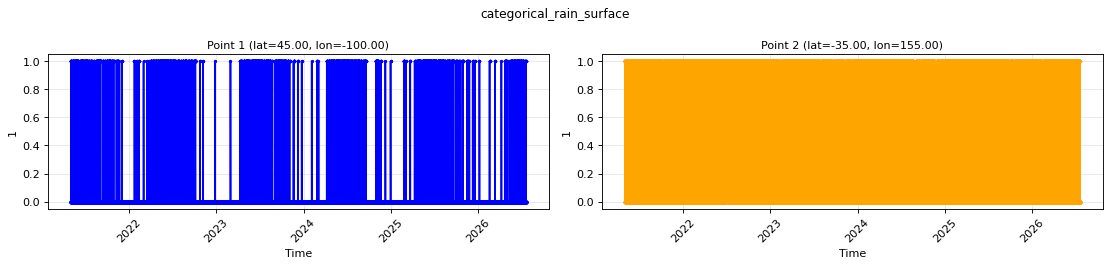

categorical_rain_surface — time series comparison

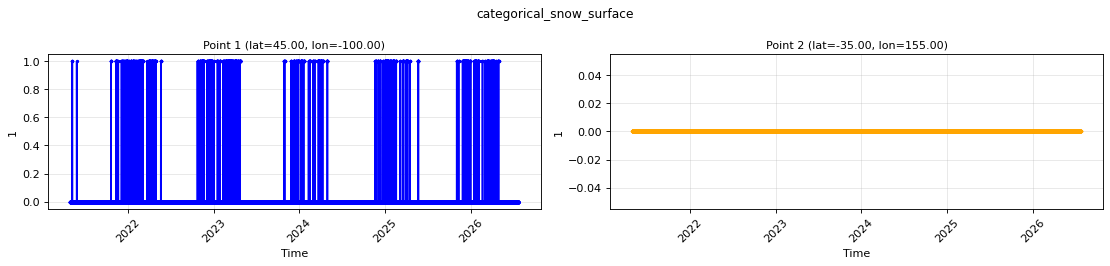

`categorical_snow_surface`

Metadata

Field	Value
units	`1`
long_name	Categorical snow
short_name	csnow
standard_name	n/a
step_type	avg

Spatial — snapshot at 2024-03-11T06:00 (reference at 2024-03-11T06:00)

Source	min	mean	max
Validation	0	0.1099	1
Reference	0	0.1534	1

Temporal — period Analysis period: 2024-08-04T01:36 - 2024-08-14T01:36

Source	mean	max
P1 Validation	0	0
P1 Reference	0	0
P2 Validation	0.05	1
P2 Reference	0.0625	1

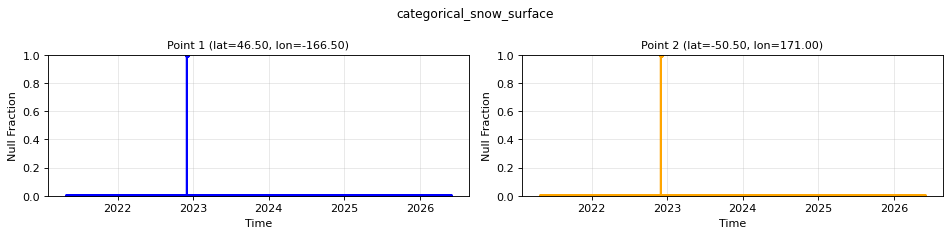

$categorical_snow_surface — null fraction$

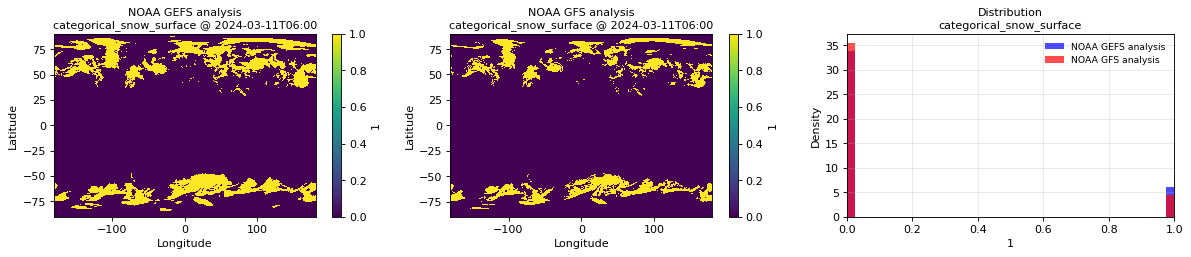

categorical_snow_surface — spatial comparison

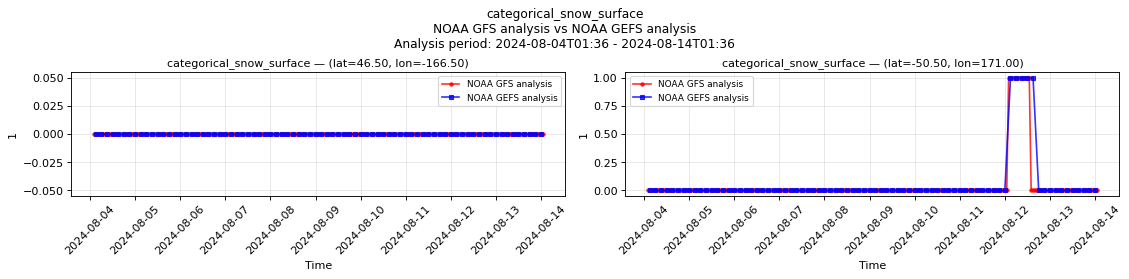

categorical_snow_surface — time series comparison

`downward_long_wave_radiation_flux_surface`

Metadata

Field	Value
units	`W m-2`
long_name	Surface downward long-wave radiation flux
short_name	sdlwrf
standard_name	surface_downwelling_longwave_flux_in_air
step_type	avg

Spatial — snapshot at 2024-03-11T06:00 (reference at 2024-03-11T06:00)

Source	min	mean	max
Validation	72	290.9	478
Reference	73	288.5	480

Temporal — period Analysis period: 2024-08-04T01:36 - 2024-08-14T01:36

Source	min	mean	max
P1 Validation	280	340	390
P1 Reference	280	338	388
P2 Validation	248	303.5	350
P2 Reference	250	296.5	348

$downward_long_wave_radiation_flux_surface — null fraction$

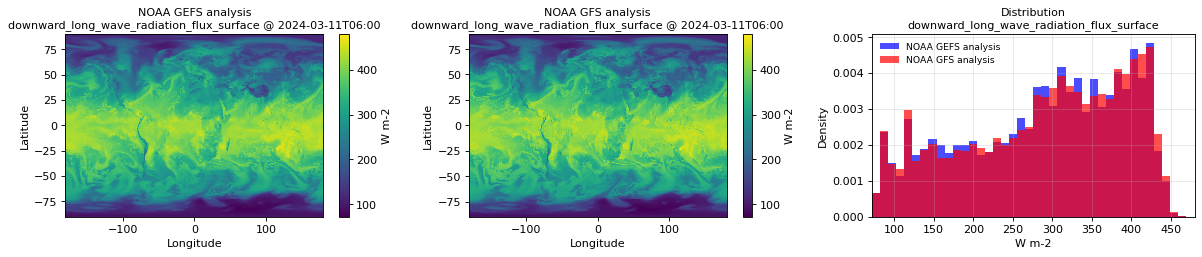

downward_long_wave_radiation_flux_surface — spatial comparison

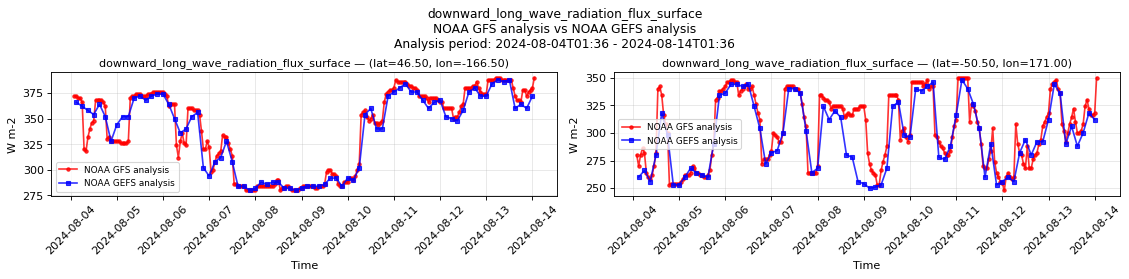

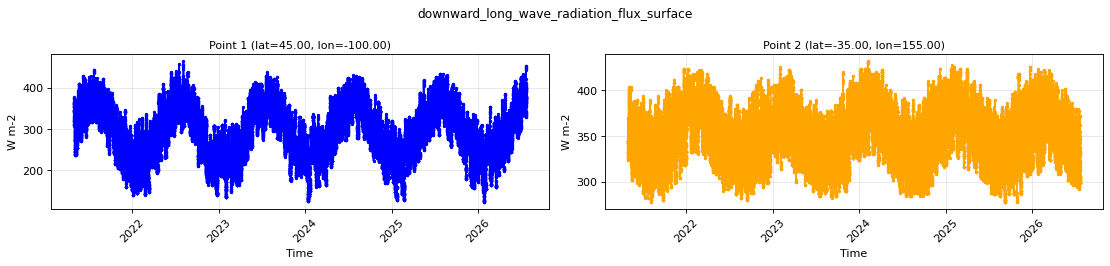

downward_long_wave_radiation_flux_surface — time series comparison

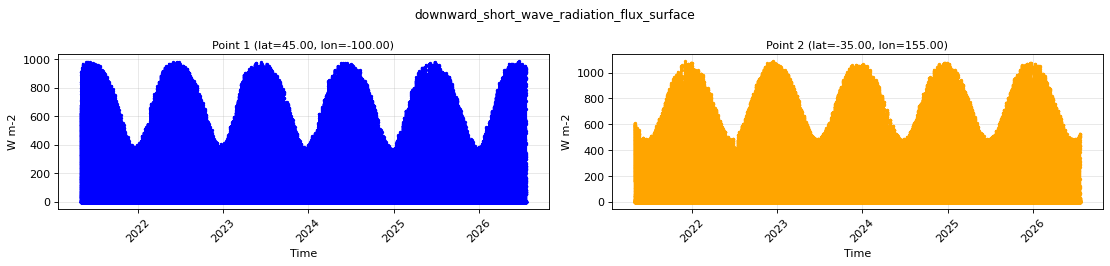

`downward_short_wave_radiation_flux_surface`

Metadata

Field	Value
units	`W m-2`
long_name	Surface downward short-wave radiation flux
short_name	sdswrf
standard_name	surface_downwelling_shortwave_flux_in_air
step_type	avg

Spatial — snapshot at 2024-03-11T06:00 (reference at 2024-03-11T06:00)

Source	min	mean	max
Validation	0	153.3	956
Reference	0	157.4	944

Temporal — period Analysis period: 2024-08-04T01:36 - 2024-08-14T01:36

Source	mean	max
P1 Validation	190.4	848
P1 Reference	191.3	736
P2 Validation	44.69	380
P2 Reference	47.8	346

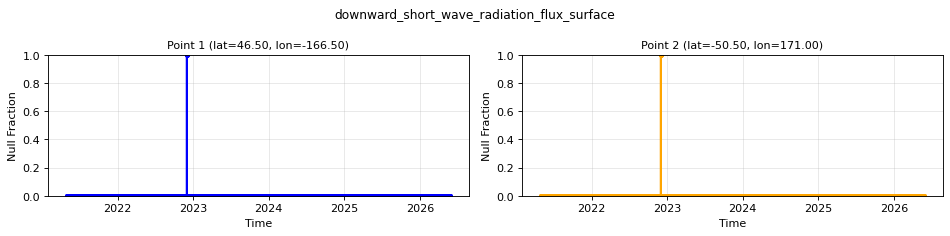

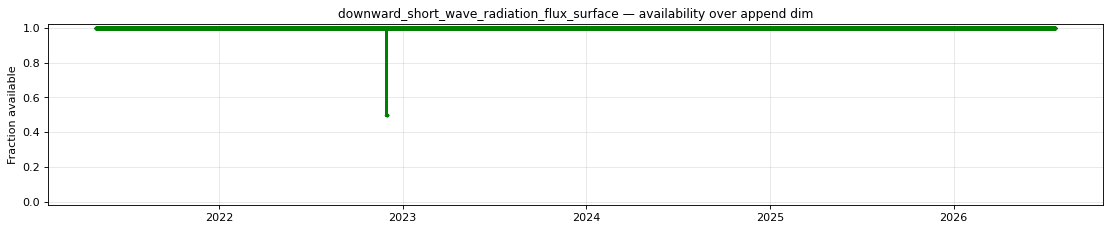

$downward_short_wave_radiation_flux_surface — null fraction$

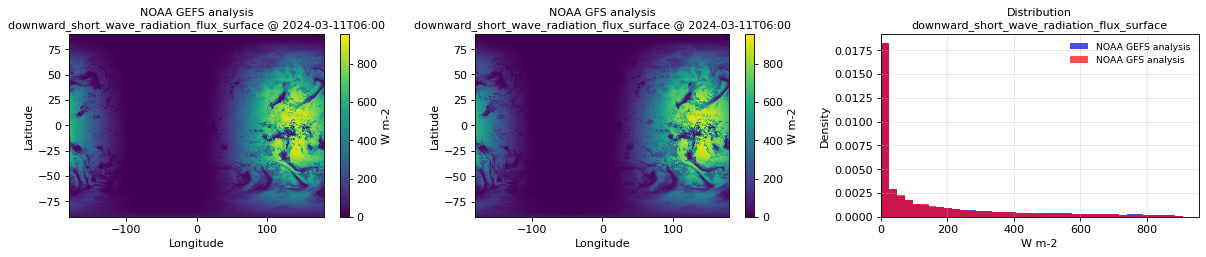

downward_short_wave_radiation_flux_surface — spatial comparison

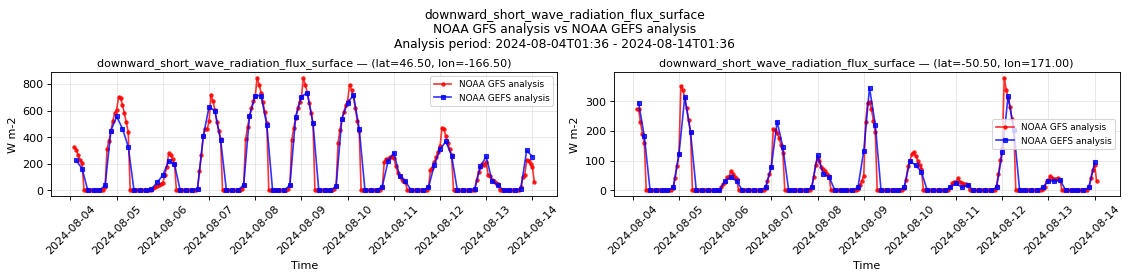

downward_short_wave_radiation_flux_surface — time series comparison

`geopotential_height_cloud_ceiling`

Metadata

Field	Value
units	`m`
long_name	Geopotential height
short_name	gh
standard_name	geopotential_height
step_type	instant

Spatial — snapshot at 2024-03-11T06:00 (reference at 2024-03-11T06:00)

Source	min	mean	max
Validation	1.973	1.155e+04	1.997e+04
Reference	2.711	1.597e+04	2.003e+04

Temporal — period Analysis period: 2024-08-04T01:36 - 2024-08-14T01:36

Source	min	mean	max
P1 Validation	10.38	6714	2.003e+04
P1 Reference	256	1.675e+04	2.003e+04
P2 Validation	131	6115	2.003e+04
P2 Reference	333	1.308e+04	2.003e+04

$geopotential_height_cloud_ceiling — null fraction$

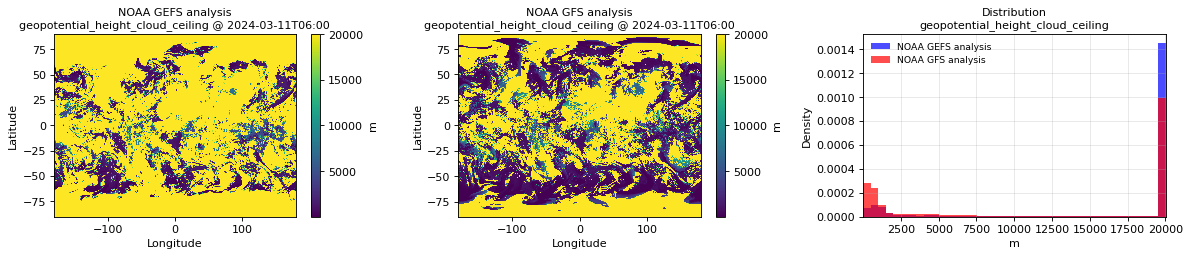

geopotential_height_cloud_ceiling — spatial comparison

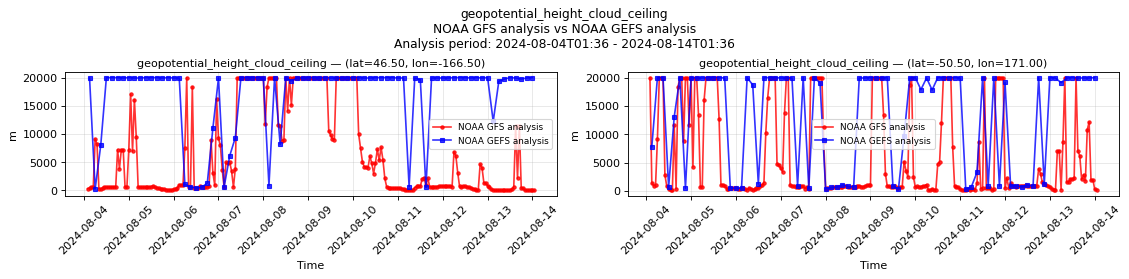

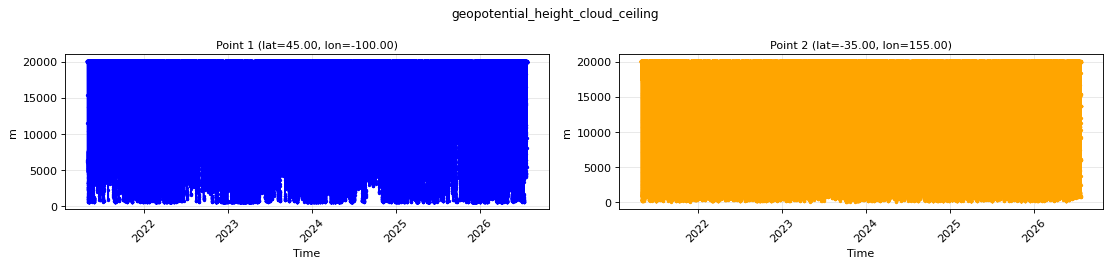

geopotential_height_cloud_ceiling — time series comparison

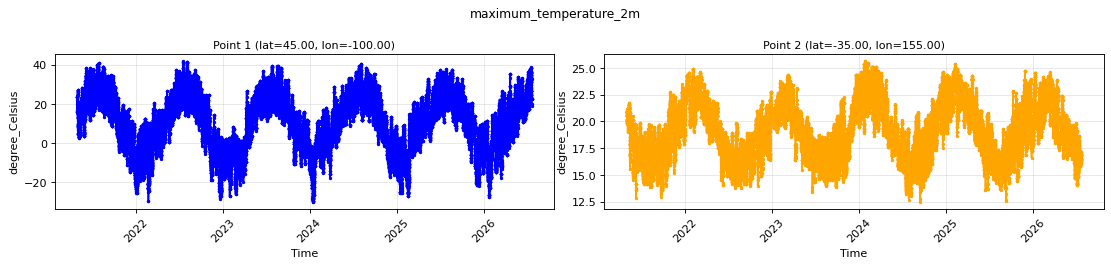

`maximum_temperature_2m`

Metadata

Field	Value
units	`degree_Celsius`
long_name	Maximum temperature
short_name	tmax
standard_name	air_temperature
step_type	max

Spatial — snapshot at 2024-03-11T06:00 (reference at 2024-03-11T06:00)

Source	min	mean	max
Validation	-57.75	3.909	41.75
Reference	-52	4.18	43.75

Temporal — period Analysis period: 2024-08-04T01:36 - 2024-08-14T01:36

Source	min	mean	max
P1 Validation	11.31	12.94	15.06
P1 Reference	11.31	13.01	15.38
P2 Validation	5.156	7.653	9
P2 Reference	5.125	7.709	9.062

$maximum_temperature_2m — null fraction$

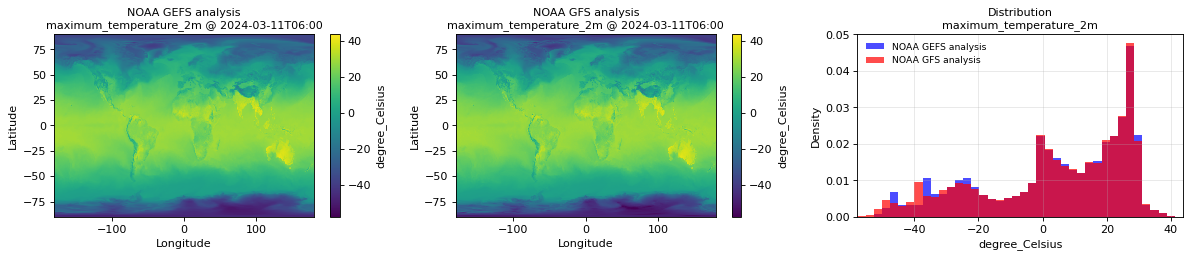

maximum_temperature_2m — spatial comparison

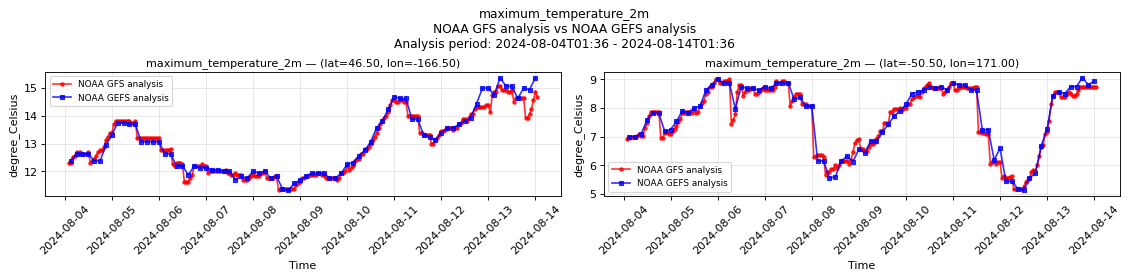

maximum_temperature_2m — time series comparison

`minimum_temperature_2m`

Metadata

Field	Value
units	`degree_Celsius`
long_name	Minimum temperature
short_name	tmin
standard_name	air_temperature
step_type	min

Spatial — snapshot at 2024-03-11T06:00 (reference at 2024-03-11T06:00)

Source	min	mean	max
Validation	-63	1.912	35.75
Reference	-61	2.225	35.75

Temporal — period Analysis period: 2024-08-04T01:36 - 2024-08-14T01:36

Source	min	mean	max
P1 Validation	11	12.64	14.56
P1 Reference	11.19	12.63	14.75
P2 Validation	4.219	7.168	8.75
P2 Reference	4.438	7.187	8.75

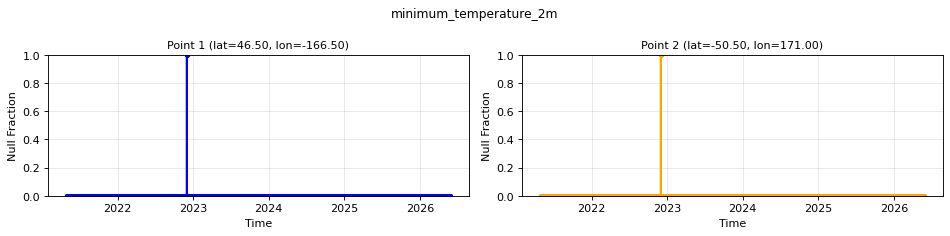

$minimum_temperature_2m — null fraction$

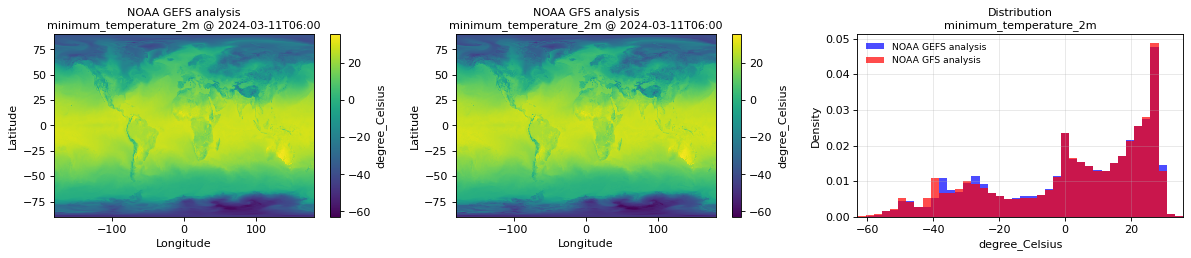

minimum_temperature_2m — spatial comparison

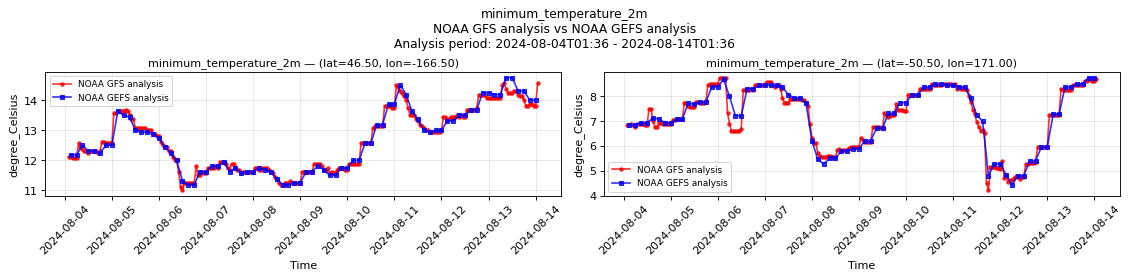

minimum_temperature_2m — time series comparison

`percent_frozen_precipitation_surface`

Metadata

Field	Value
units	`percent`
long_name	Percent frozen precipitation
short_name	cpofp
standard_name	n/a
step_type	instant

Spatial — snapshot at 2024-03-11T06:00 (reference at 2024-03-11T06:00)

Source	min	mean	max
Validation	-50	-30.37	100
Reference	-50	-24.93	100

Temporal — period Analysis period: 2024-08-04T01:36 - 2024-08-14T01:36

Source	min	mean	max
P1 Validation	-50	-38.85	-6.109e-06
P1 Reference	-50	-40.14	-6.109e-06
P2 Validation	-50	-32.82	11.62
P2 Reference	-50	-28.15	100

$percent_frozen_precipitation_surface — null fraction$

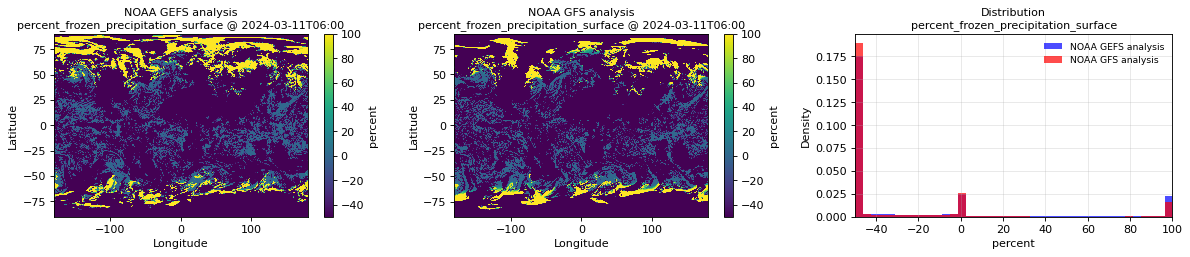

percent_frozen_precipitation_surface — spatial comparison

percent_frozen_precipitation_surface — time series comparison

`precipitable_water_atmosphere`

Metadata

Field	Value
units	`kg m-2`
long_name	Precipitable water
short_name	pwat
standard_name	atmosphere_mass_content_of_water_vapor
step_type	instant

Spatial — snapshot at 2024-03-11T06:00 (reference at 2024-03-11T06:00)

Source	min	mean	max
Validation	0.2012	18.27	79.5
Reference	0.2002	18.25	78

Temporal — period Analysis period: 2024-08-04T01:36 - 2024-08-14T01:36

Source	min	mean	max
P1 Validation	12.12	26.03	45.75
P1 Reference	12.19	26.19	46
P2 Validation	5.625	12.76	22.88
P2 Reference	5.5	12.75	22.75

$precipitable_water_atmosphere — null fraction$

precipitable_water_atmosphere — spatial comparison

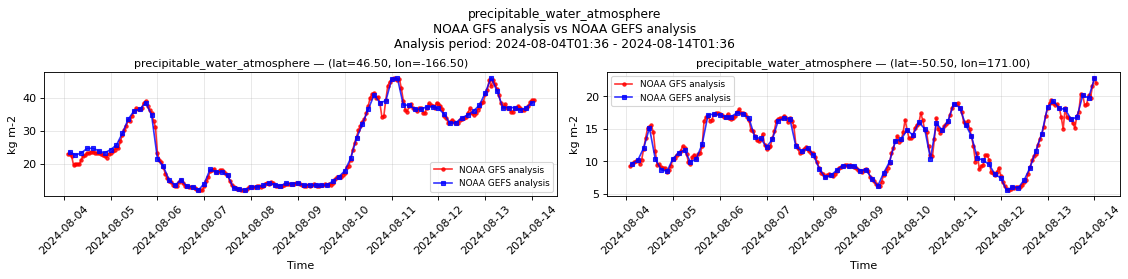

precipitable_water_atmosphere — time series comparison

`precipitation_surface`

Metadata

Field	Value
units	`kg m-2 s-1`
long_name	Precipitation rate
short_name	prate
standard_name	precipitation_flux
step_type	avg

Spatial — snapshot at 2024-03-11T06:00 (reference at 2024-03-11T06:00)

Source	min	mean	max
Validation	0	2.753e-05	0.01636
Reference	0	2.664e-05	0.004486

Temporal — period Analysis period: 2024-08-04T01:36 - 2024-08-14T01:36

Source	mean	max
P1 Validation	8.76e-06	0.0002079
P1 Reference	8.754e-06	0.0002222
P2 Validation	2.824e-05	0.0005226
P2 Reference	2.087e-05	0.0004444

Nulls — P1: 13/44421 (13 unavailable (first: 2021-05-01T00:00:00, 2022-11-29T20:00:00, 2022-11-29T21:00:00 … last: 2022-11-30T10:00:00, 2022-11-30T11:00:00, 2022-11-30T12:00:00)); P2: 13/44421 (13 unavailable (first: 2021-05-01T00:00:00, 2022-11-29T20:00:00, 2022-11-29T21:00:00 … last: 2022-11-30T10:00:00, 2022-11-30T11:00:00, 2022-11-30T12:00:00))

$precipitation_surface — null fraction$

precipitation_surface — spatial comparison

precipitation_surface — time series comparison

`pressure_reduced_to_mean_sea_level`

Metadata

Field	Value
units	`Pa`
long_name	Pressure reduced to MSL
short_name	prmsl
standard_name	air_pressure_at_mean_sea_level
step_type	instant

Spatial — snapshot at 2024-03-11T06:00 (reference at 2024-03-11T06:00)

Source	min	mean	max
Validation	9.542e+04	1.011e+05	1.053e+05
Reference	9.574e+04	1.011e+05	1.048e+05

Temporal — period Analysis period: 2024-08-04T01:36 - 2024-08-14T01:36

Source	min	mean	max
P1 Validation	1.001e+05	1.016e+05	1.03e+05
P1 Reference	1e+05	1.016e+05	1.03e+05
P2 Validation	9.99e+04	1.013e+05	1.03e+05
P2 Reference	9.99e+04	1.014e+05	1.031e+05

$pressure_reduced_to_mean_sea_level — null fraction$

pressure_reduced_to_mean_sea_level — spatial comparison

pressure_reduced_to_mean_sea_level — time series comparison

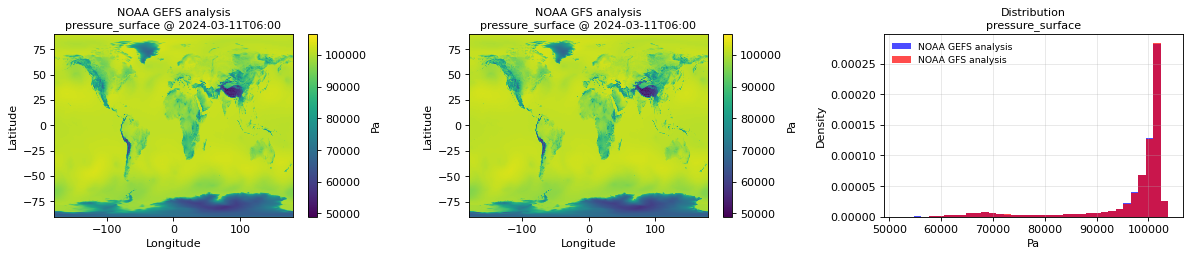

`pressure_surface`

Metadata

Field	Value
units	`Pa`
long_name	Surface pressure
short_name	sp
standard_name	surface_air_pressure
step_type	instant

Spatial — snapshot at 2024-03-11T06:00 (reference at 2024-03-11T06:00)

Source	min	mean	max
Validation	4.896e+04	9.665e+04	1.067e+05
Reference	4.97e+04	9.664e+04	1.033e+05

Temporal — period Analysis period: 2024-08-04T01:36 - 2024-08-14T01:36

Source	min	mean	max
P1 Validation	1.001e+05	1.016e+05	1.03e+05
P1 Reference	1e+05	1.017e+05	1.03e+05
P2 Validation	9.99e+04	1.013e+05	1.03e+05
P2 Reference	9.99e+04	1.014e+05	1.031e+05

$pressure_surface — null fraction$

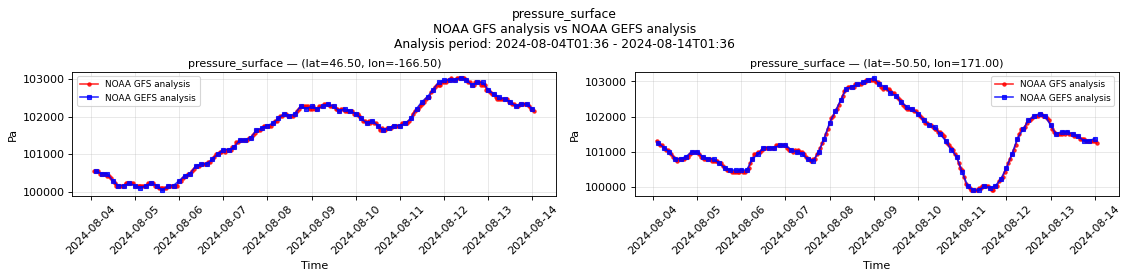

pressure_surface — time series comparison

`relative_humidity_2m`

Metadata

Field	Value
units	`percent`
long_name	2 metre relative humidity
short_name	2r
standard_name	relative_humidity
step_type	instant

Spatial — snapshot at 2024-03-11T06:00 (reference at 2024-03-11T06:00)

Source	min	mean	max
Validation	1	79.32	100
Reference	2.094	79.36	100

Temporal — period Analysis period: 2024-08-04T01:36 - 2024-08-14T01:36

Source	min	mean	max
P1 Validation	69	85.92	100
P1 Reference	71.5	86.22	99.5
P2 Validation	61	83.16	95
P2 Reference	61.25	82.94	94.5

$relative_humidity_2m — null fraction$

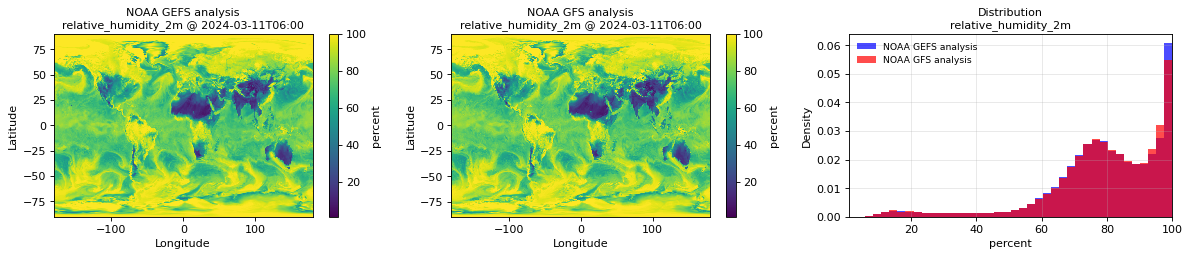

relative_humidity_2m — spatial comparison

relative_humidity_2m — time series comparison

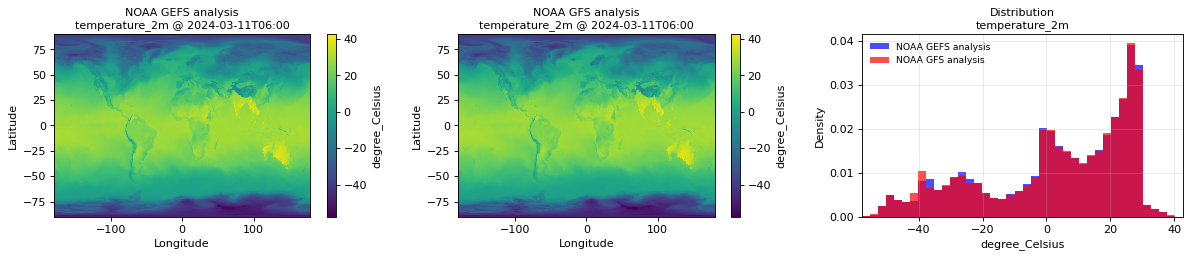

`temperature_2m`

Metadata

Field	Value
units	`degree_Celsius`
long_name	2 metre temperature
short_name	2t
standard_name	air_temperature
step_type	instant

Spatial — snapshot at 2024-03-11T06:00 (reference at 2024-03-11T06:00)

Source	min	mean	max
Validation	-57.75	3.156	41.5
Reference	-56.75	3.276	42.75

Temporal — period Analysis period: 2024-08-04T01:36 - 2024-08-14T01:36

Source	min	mean	max
P1 Validation	11.06	12.81	15
P1 Reference	11.19	12.84	15.06
P2 Validation	4.5	7.436	9.062
P2 Reference	4.812	7.462	8.875

$temperature_2m — null fraction$

`total_cloud_cover_atmosphere`

Metadata

Field	Value
units	`percent`
long_name	Total cloud cover
short_name	tcc
standard_name	cloud_area_fraction
step_type	avg

Spatial — snapshot at 2024-03-11T06:00 (reference at 2024-03-11T06:00)

Source	min	mean	max
Validation	0	70.72	100
Reference	0	61.89	100

Temporal — period Analysis period: 2024-08-04T01:36 - 2024-08-14T01:36

Source	min	mean	max
P1 Validation	0	82.13	100
P1 Reference	0	80.31	100
P2 Validation	5.906	87.73	100
P2 Reference	0	77.66	100

$total_cloud_cover_atmosphere — null fraction$

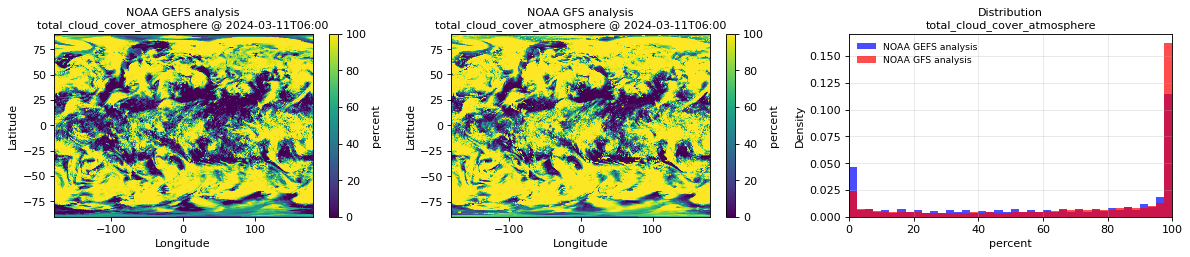

total_cloud_cover_atmosphere — spatial comparison

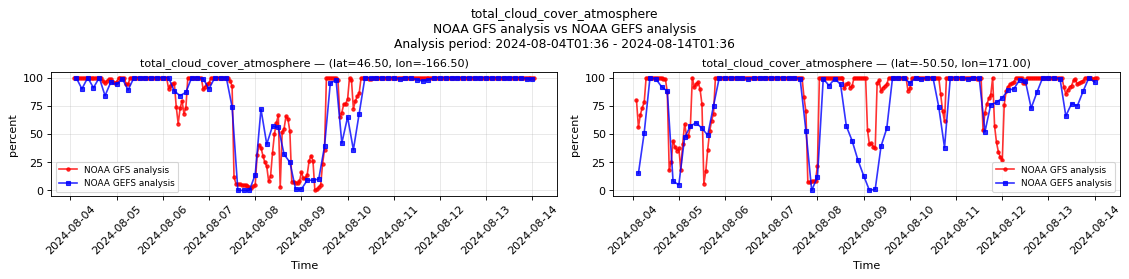

total_cloud_cover_atmosphere — time series comparison

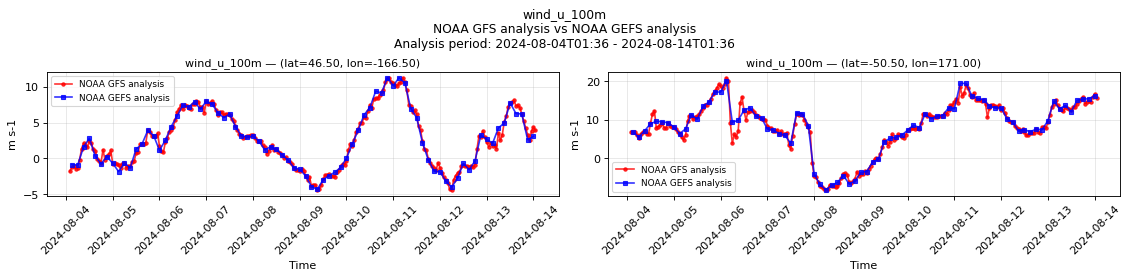

`wind_u_100m`

Metadata

Field	Value
units	`m s-1`
long_name	100 metre U wind component
short_name	100u
standard_name	eastward_wind
step_type	instant

Spatial — snapshot at 2024-03-11T06:00 (reference at 2024-03-11T06:00)

Source	min	mean	max
Validation	-28	0.01744	28.75
Reference	-25.5	0.02691	29.25

Temporal — period Analysis period: 2024-08-04T01:36 - 2024-08-14T01:36

Source	min	mean	max
P1 Validation	-4.438	2.616	11.25
P1 Reference	-4.312	2.582	11.25
P2 Validation	-8.375	8.297	21
P2 Reference	-8.25	8.468	20.25

$wind_u_100m — null fraction$

`wind_u_10m`

Metadata

Field	Value
units	`m s-1`
long_name	10 metre U wind component
short_name	10u
standard_name	eastward_wind
step_type	instant

Spatial — snapshot at 2024-03-11T06:00 (reference at 2024-03-11T06:00)

Source	min	mean	max
Validation	-22	-0.01772	23.75
Reference	-20.5	-0.01961	24.25

Temporal — period Analysis period: 2024-08-04T01:36 - 2024-08-14T01:36

Source	min	mean	max
P1 Validation	-4.125	1.91	8.625
P1 Reference	-4	1.961	8.375
P2 Validation	-7.375	6.437	16.25
P2 Reference	-7.5	6.542	15.5

$wind_u_10m — null fraction$

`wind_v_100m`

Metadata

Field	Value
units	`m s-1`
long_name	100 metre V wind component
short_name	100v
standard_name	northward_wind
step_type	instant

Spatial — snapshot at 2024-03-11T06:00 (reference at 2024-03-11T06:00)

Source	min	mean	max
Validation	-26	-0.1929	36
Reference	-26.25	-0.1791	36

Temporal — period Analysis period: 2024-08-04T01:36 - 2024-08-14T01:36

Source	min	mean	max
P1 Validation	-5.875	0.513	13.75
P1 Reference	-6.312	0.3996	12.38
P2 Validation	-19.25	-5.314	17
P2 Reference	-18.75	-5.285	15.62

$wind_v_100m — null fraction$

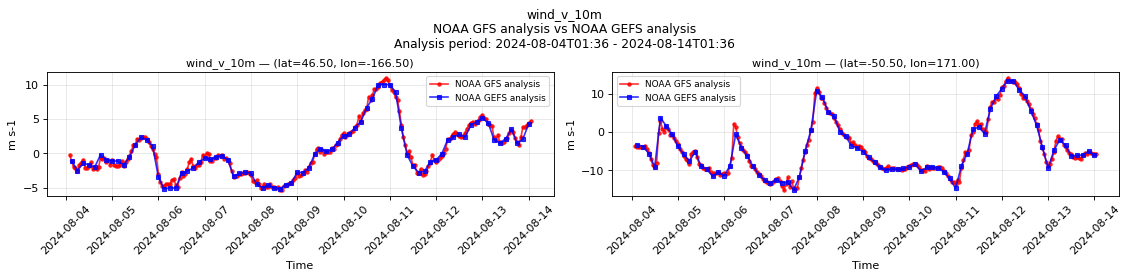

`wind_v_10m`

Metadata

Field	Value
units	`m s-1`
long_name	10 metre V wind component
short_name	10v
standard_name	northward_wind
step_type	instant

Spatial — snapshot at 2024-03-11T06:00 (reference at 2024-03-11T06:00)

Source	min	mean	max
Validation	-20.75	-0.1588	28.5
Reference	-21.5	-0.1407	28.75

Temporal — period Analysis period: 2024-08-04T01:36 - 2024-08-14T01:36

Source	min	mean	max
P1 Validation	-5.375	0.3141	11
P1 Reference	-5.188	0.2208	10
P2 Validation	-15.25	-4.349	14.25
P2 Reference	-15.12	-4.389	13.5

$wind_v_10m — null fraction$
